Place of Origin : Shandong, China
Brand Name : HUISIDUN
Model Number : 10 inch UDF
After-sales Service Provided : None
Warranty : None
Type : Activated Carbon, Water Filter Cartridge
Use : Household Pre-Filtration
Application : Hotel, Car, Outdoor, Garage, RV, Commercial, Household
Power Source : Electric
App-Controlled : NO
Private Mold : Yes

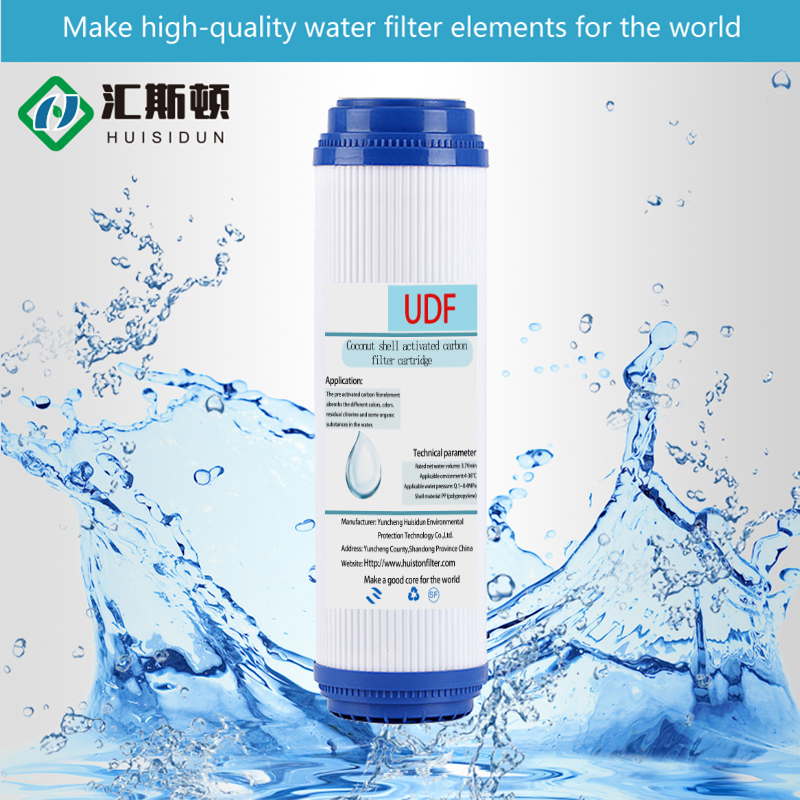

Product name : UDF Filter Cartridge
Material : Coconut Shell Activated Carbon
Function : Removes Bacteria Chlorine Odor
Size : 10*2.5 /10*4.5/ 20*4.5/20*2.5
Certification : ISO9001
OEM : Support
Packaging Details : According to customer requirements and export carton
MOQ : 500 pieces
Price : $0.48/pieces 500-999 pieces
Brand | HuiSiDun | ||||||
Product name | UDF Granular activated carbon filter | ||||||
Working pressure drop | 0.1~0.2kgf/cm | ||||||
Max pressure borne | 7kgf/cm | ||||||
Max differential pressure | 4kgf/cm | ||||||
Max working temperature | 60°C | ||||||
Max flow rate | 8LPM@10’’ with 0.15kgf/cm dp | ||||||
Surface area | 800~1000m2/g | ||||||
Dimension | ID: 30mm; OD: 65mm, 115mm | ||||||
Length | 10’’, 20’’, 30’’, 40’’ | ||||||
Iodine absorption value | 900mg/g | ||||||
Benzene absorption value | 20~25% | ||||||
Methyl blue absorption value | 13~16ml/g | ||||||
COD removal rate | 0.5825 | ||||||
Residual chlorine removal rate | ≥96.83% | ||||||
End cap/outer casing | Polystyrene | ||||||
Expansion pad | Polypropylene | ||||||
Gasket | Buna-N,Santoprene | ||||||
Netting | Polyethylene |
![]() |
